The LMZ10503EXT Power module is a complete, easy-to-use DC-DC solution capable of driving up to 3-A loads, with outstanding power conversion efficiency, output voltage accuracy, line and load regulation. And has an innovative package that improves thermal performance and allows welding by hand or machine.
Pin Configuration and Functions
The LMZ10503EXT accepts input voltage rails between 2.95V and 5.5V and provides adjustable high precision output voltage down to 0.8V. 1-MHz fixed frequency PWM switch provides predictable EMI characteristics. Two external compensation components can be adjusted to set the fastest response time while allowing the choice of using ceramic or electrolytic output capacitors. Externally programmable soft-start capacitors facilitate controlled start.
Typical Application Circuit
The LMZ10503EXT is a reliable and powerful solution with the following features: lossless period peak current limitation to protect against overcurrent or short circuit faults, hot shutdown, input undervoltage locking, and pre-biased start. WEBENCH and Power Designer tools are also fully supported.

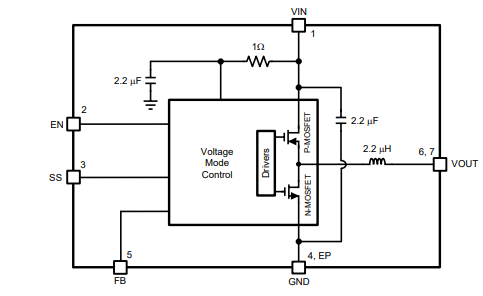

Functional Block Diagram
