The LMZ35003 Power module is an easy-to-use integrated power solution that integrates 2.5a DC/DC converters with shielded inductors and passivity into a low-profile QFN package. This total power solution allows only five external components and eliminates loop compensation and the magnetic part selection process.
Simplified Application
The LMZ35003 offers the flexibility and feature set of a discrete point of load design and is ideal for powering a wide range of ics and systems. Advanced packaging technology provides a powerful and reliable power solution compatible with standard QFN installation and testing techniques.

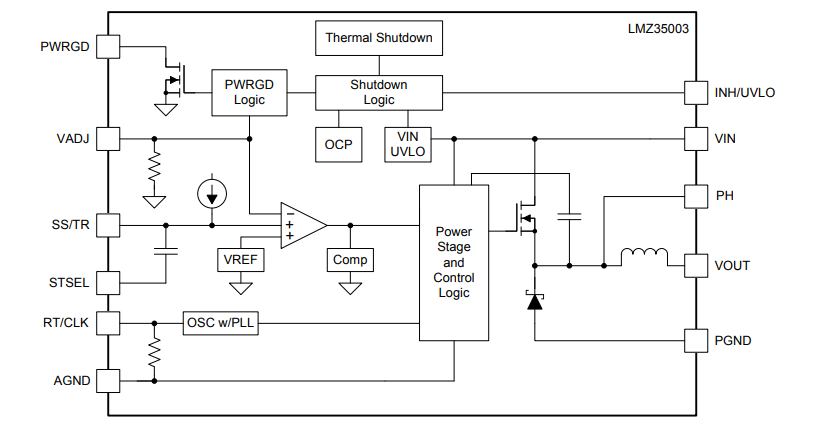

Functional block diagram
The QFN package size is 9 mm x 11 mm x 2.8 mm, easy to solder onto the printed circuit board and allows for compact point-of-load design with over 90% efficiency and excellent power consumption capability.

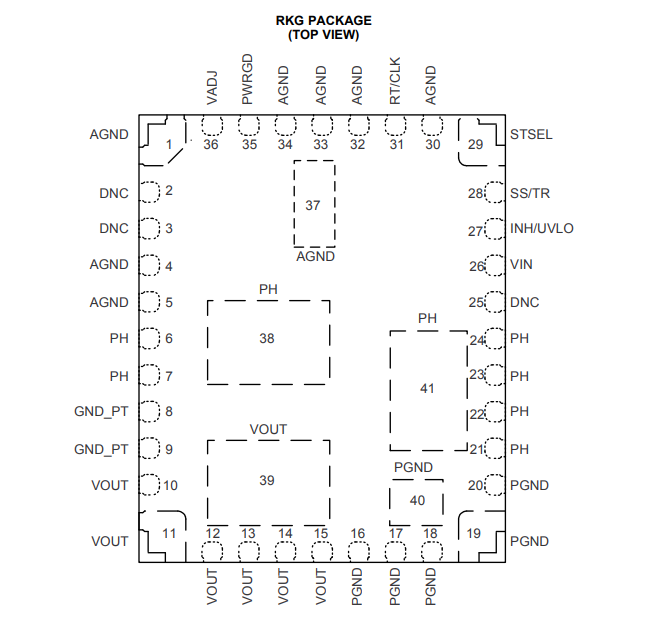

Pin description
Features
● Complete Integrated Power Solution Allows small Footprint, Low-Profile Design
● Wide Input Voltage Range from 7 V to 50 V
● Output Adjustable from 2.5V to 15V
● 65-V Surge Capability
● Efficiencies Up To 96%
● Adjustable Switching Frequency (300 kHz to 1 MHz)
● Synchronizes to an External Clock
● Adjustable Slow Start
● Output Voltage Sequencing and Tracking
● Power Good Output
● Programmable Undervoltage Lockout (UVLO)
● Output Overcurrent Protection
● Over Temperature Protection
● Pre-bias Output Start-up
● Operating Temperature Range: -40 °C to 85°C
● Enhanced Thermal Performance: 14°C/W
● Meets EN55022 Class B Emissions
- Integrated Shielded Inductor
Applications
● Industrial and Motor Controls
● Automated Test Equipment
● Medical and Imaging Equipment
● High Density Power Systems
